Intel  8749

? onmouseover= Technical Specification Home



Introduction date:
Technology:
Category:
EPROM:
RAM:
Timers/Event Counters:
Interrupts:
Instructions:
Temperature:
Power Dissipation:

History:

1980
High performance HMOS-E
HMOS-E Single-Component 8-BIT Microcontroller
2
k x 8
128 x 8 Bit
2 x 16 Bit
2 single level
over 96 (90% single Byte)
0 - 70°C
1,0 Watt

The 8749 is compatible with 8080/8085 peripherals

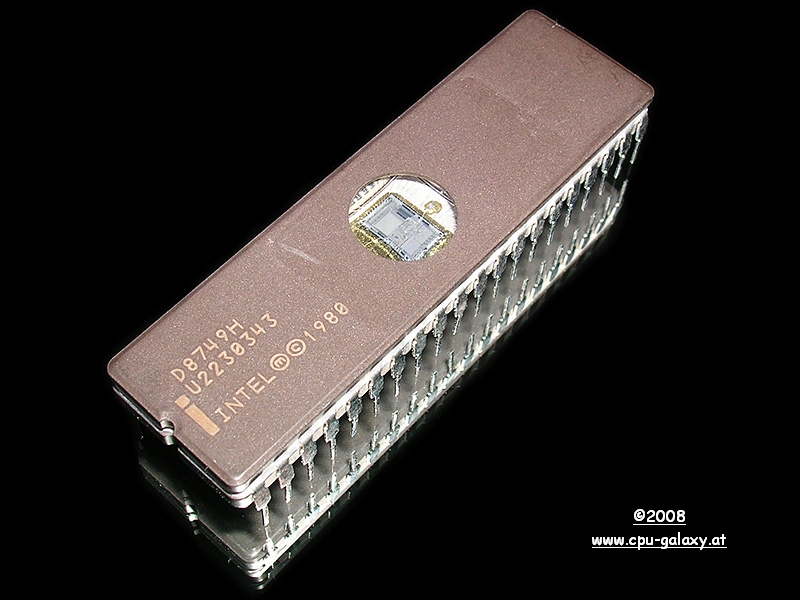

  D8749H

   Philippines
More Info about the INTEL 8749

Datasheet
D8749H.pdf     0,6MB

8749 Pin out

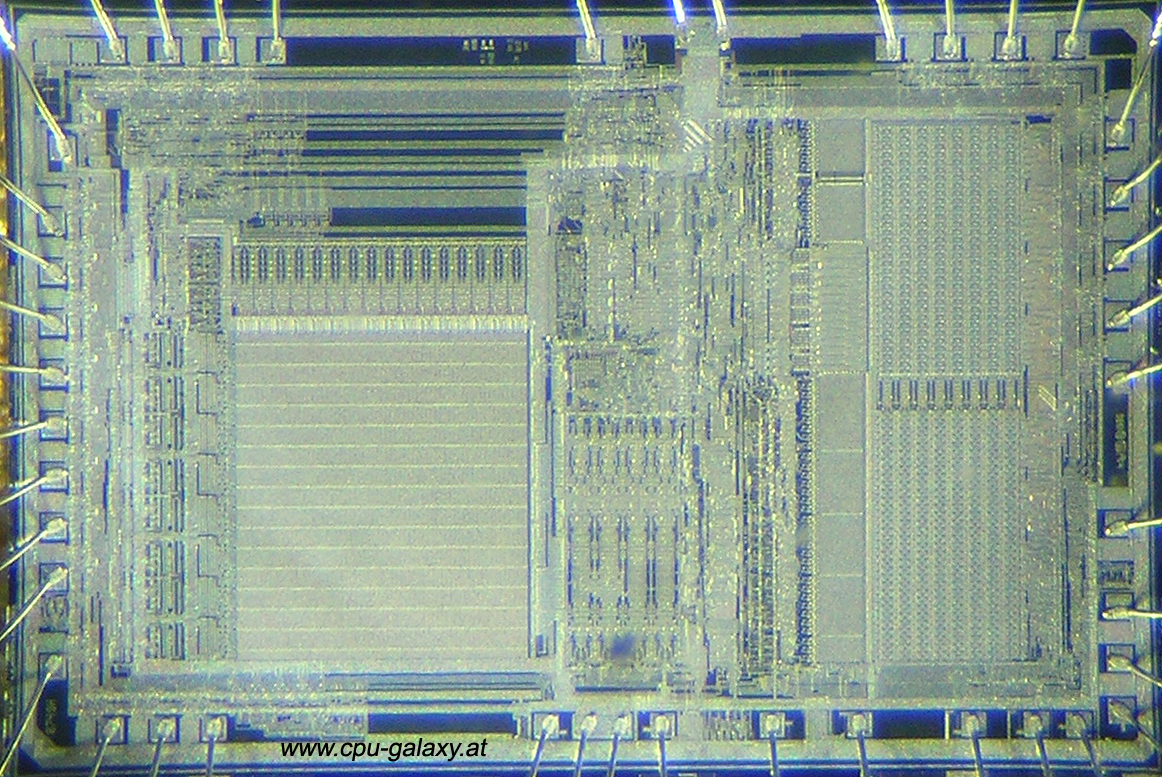

Intel D8749H Core

Download HIRES Core Picture 1MB
