Technical Specification


Introduction date:
Technology:
Category:
EPROM:
RAM:
Timers/Event Counters:
Interrupts:
Instructions:
Temperature:
Power Dissipation:

History:




1980
High performance NMOS or CMOS process.
8 Bit control oriented Microcomputer
4k x 8
128 x 8 Bit
2 x 16 Bit
5
111 (64 Single cycle)
-40 - 85C
1,5 Watt

The 8751 is a part of the MCS-51 family.



AJ87C51GB CJ87C51GB C8751
Korea, Engineering Sample!! Q8282, Korea, Engineering Sample!! Malaysia, 8319

C8751-8 C8751H C8751H12
Malaysia, 8239 Malaysia, 8545 Malaysia, 8528

C8751H-88 D8751H D87C51
Malaysia, 8540 Malaysia Malaysia, (c) 1980

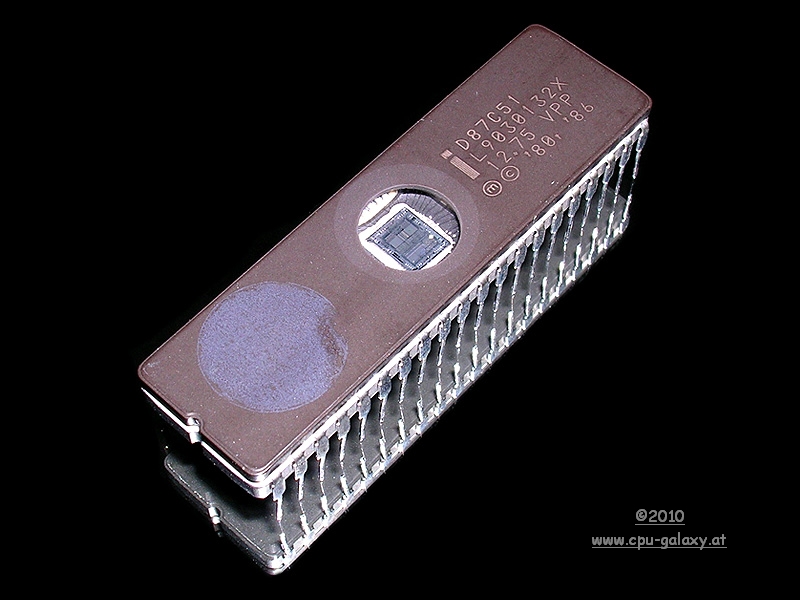

D87C51 D87C51FA MR87C51 /B
Malaysia, (c) 80,86 Malaysia Malaysia, 8911

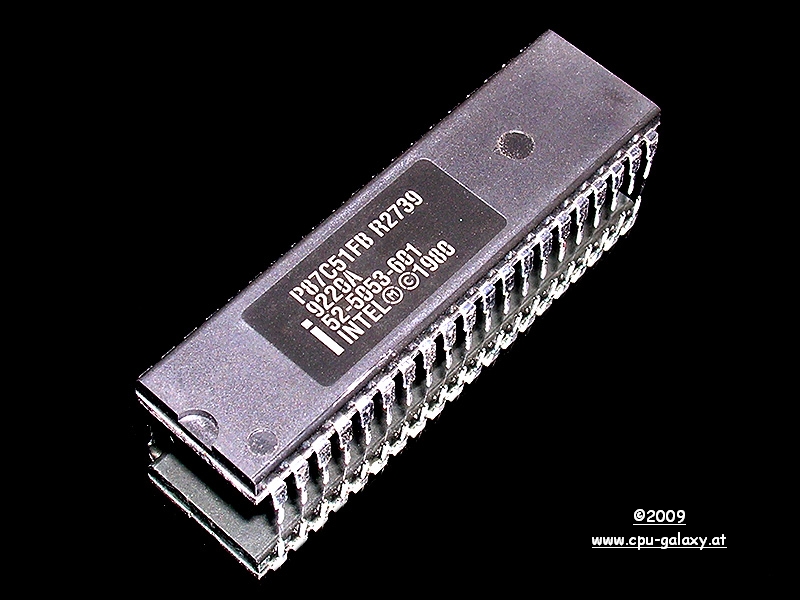

N87C51FA-1 N87C51RA P87C51FB
Malaysia Malaysia Malaysia

R8751H TP87C51FA U87C51HB
Malaysia, 8735 Malaysia Japan


Datasheet
D8751H.pdf    0,99MB


8751 Pin out

Intel C8749H12 Core

Download
HIRES Core Picture 1,5MB
