Intel  8755

? onmouseover= Technical Specification Home
Introduction date:
Technology:
Category:
Voltage:
Temperature range:
Memory:
Ports:

History:


1976
HMOS
EPROM with I/O
5 V
0 - 70°C
16384 Bit
2 General Purpose 8-Bit I/O Ports

directly compatible with 8085AH

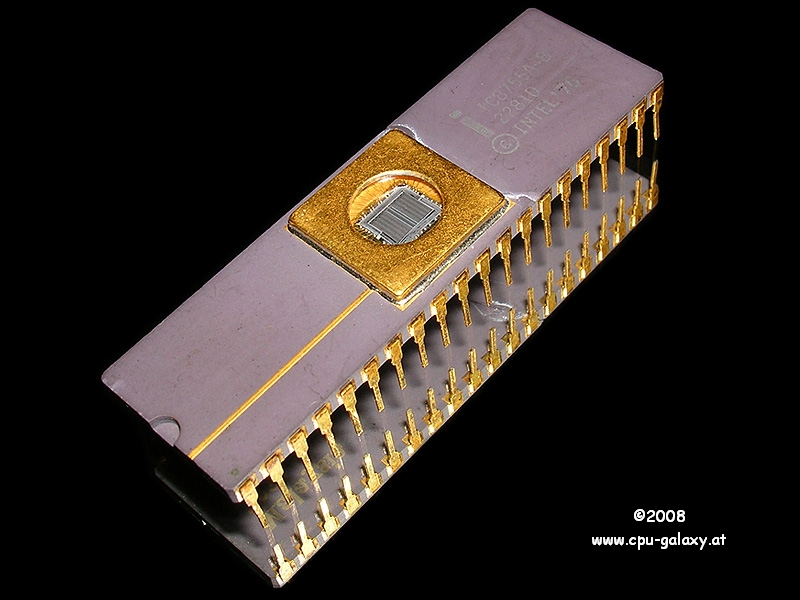

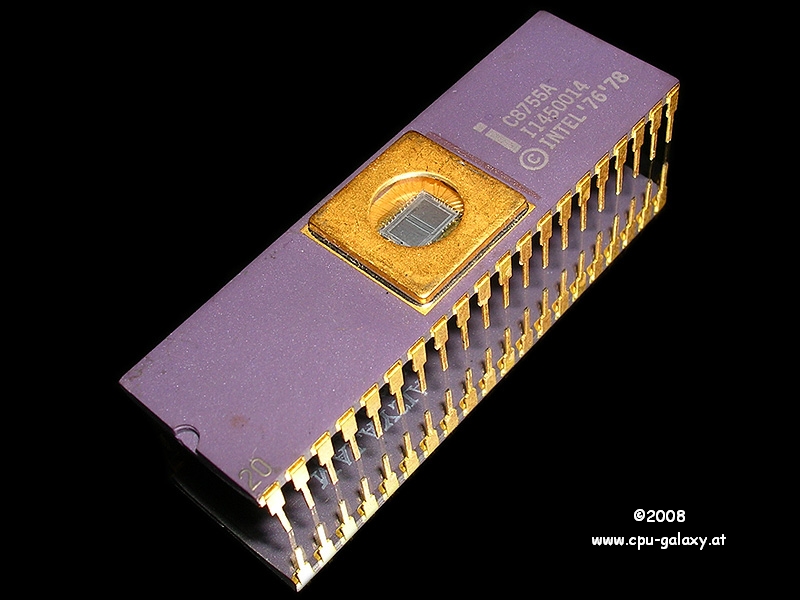

C8755A IC8755A-8 D8755A
Malaysia, 8123 Malaysia, 7931

Malaysia, 7931

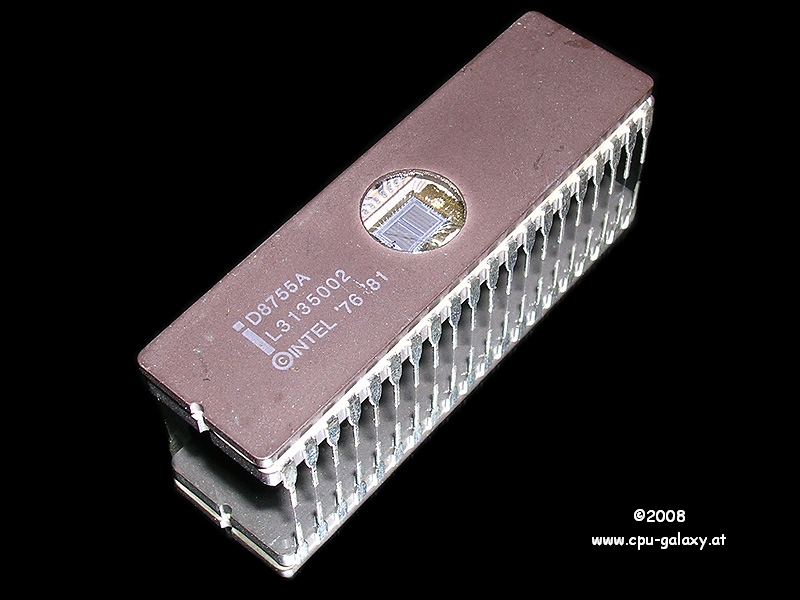

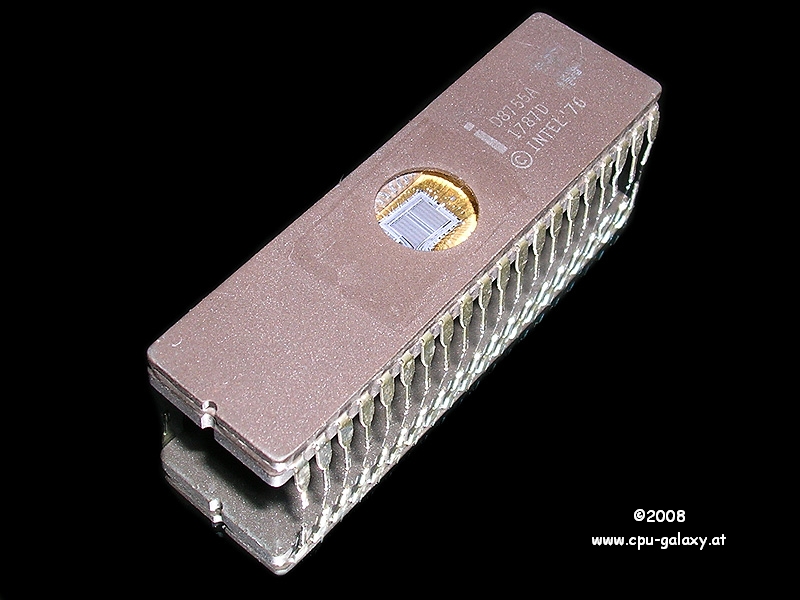

D8755A

Malaysia, 8380
More Info about the INTEL 8755

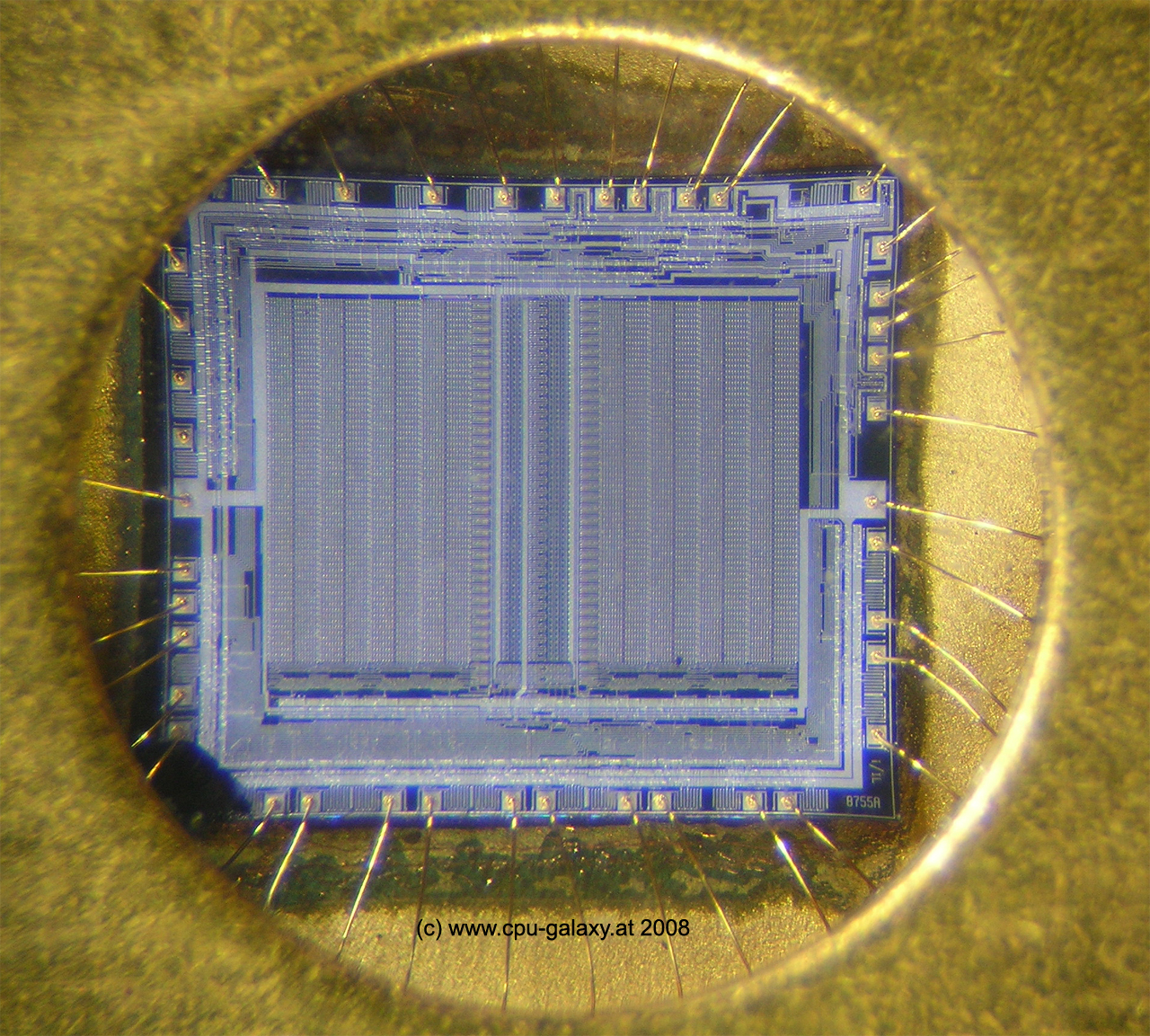

C8755 Core Picture 800x600

Click here to download HiRes.Pic
1280x1200
1,5MB jpg


Datasheet
D8751H.pdf    0,55MB
