Technical Specification

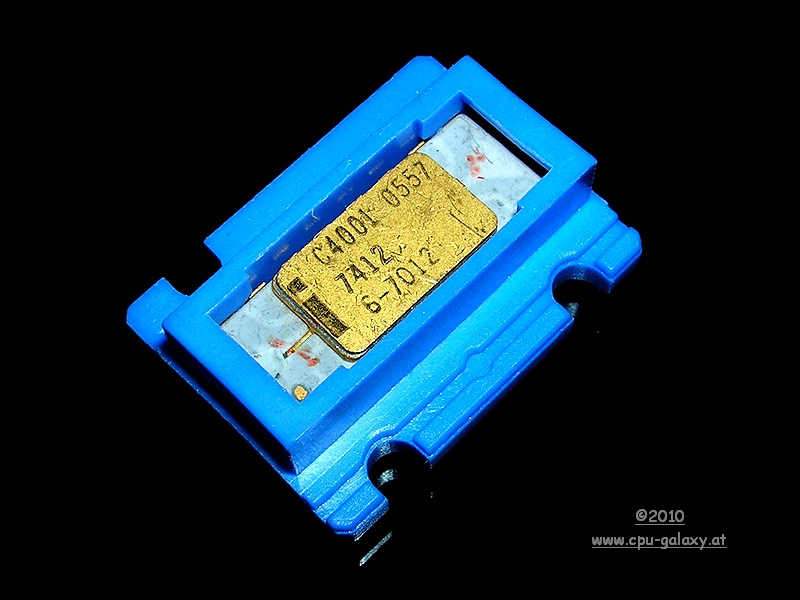

new C4001 in original carrier
Introduction date:
Technology:
Category:
Memory:

History:


1971
P-channel silicon gate MOS technology
2048 Bit Read Only Memory
256 x 8-bit

The 4001 was designed to be used with other MCS-4/40 devices such as the
4004 CPU

C4001 C4001 C4001

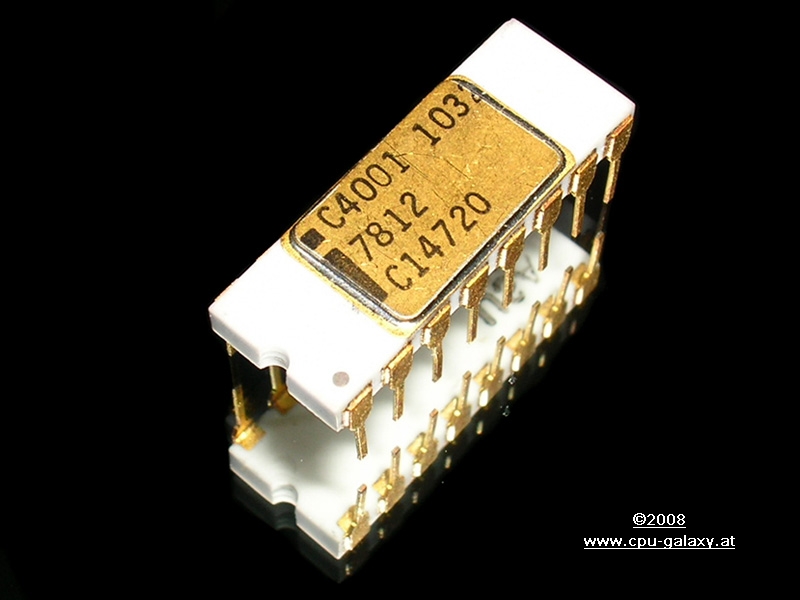

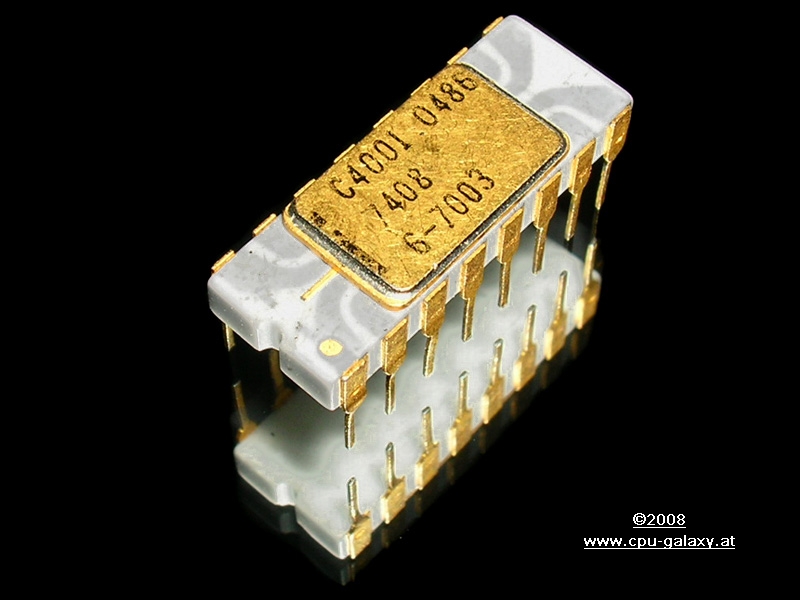

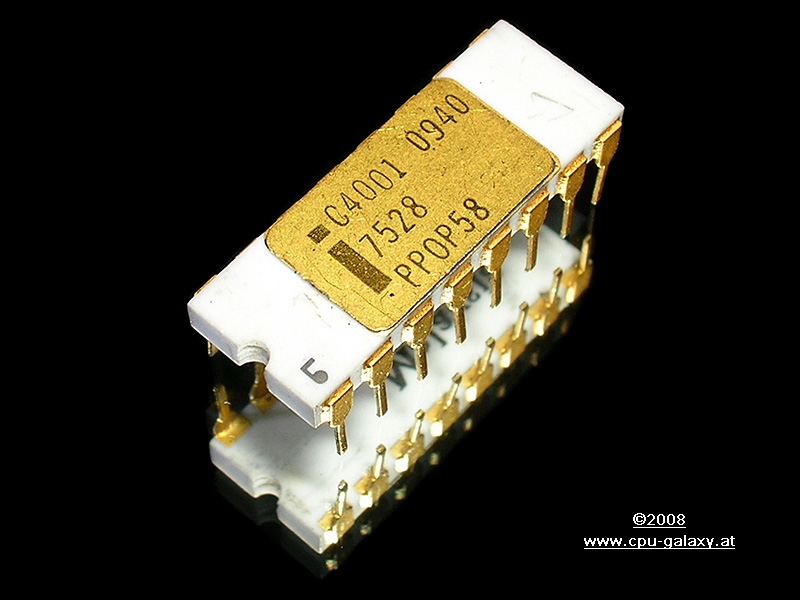

 Grey Traces, NDC Malaysia, 7528  USA, 7819

C4001 C4001 C4001

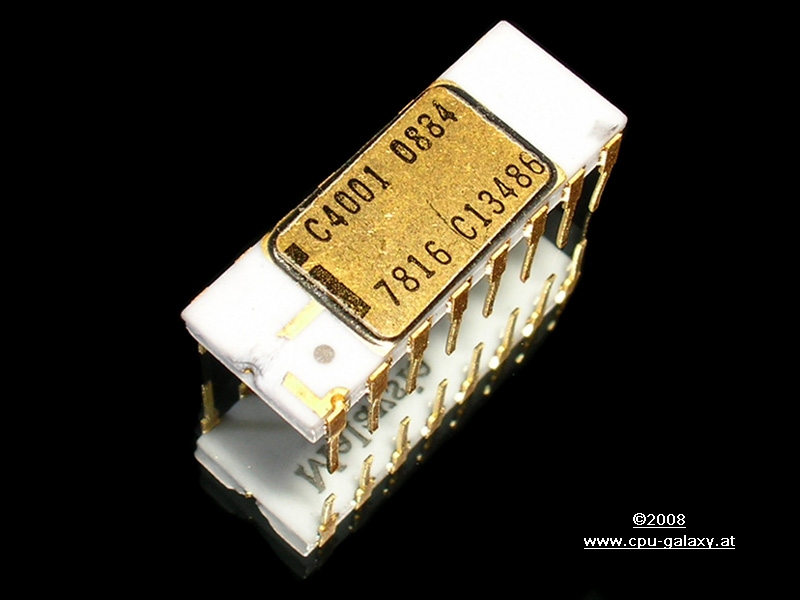

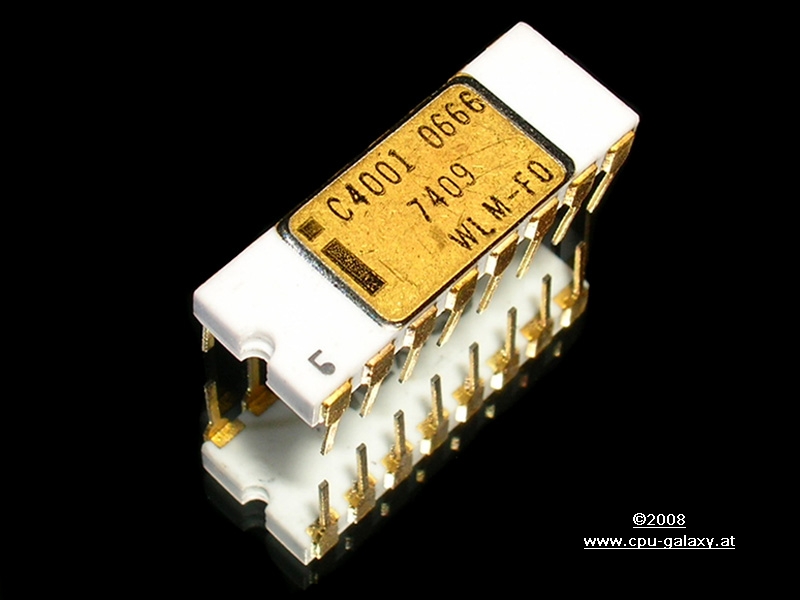

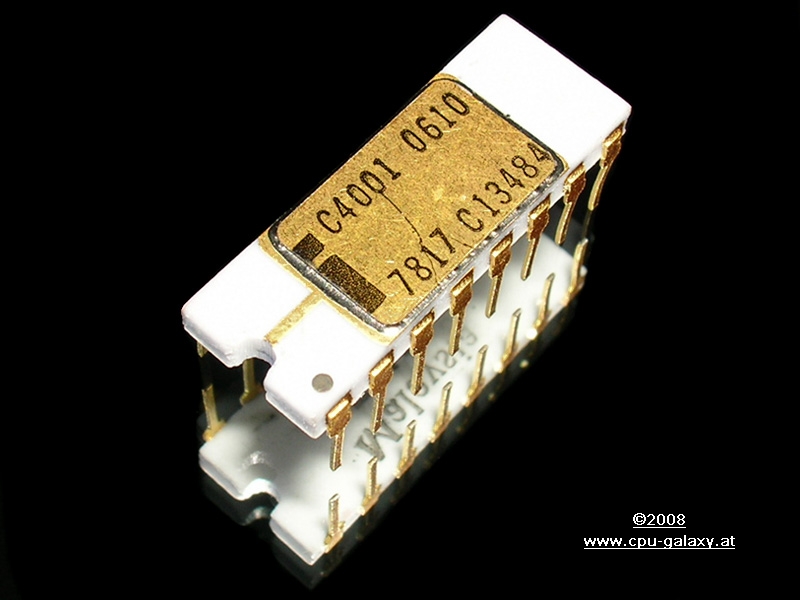

Mexico, 7409 Malaysia, 7817 Malaysia, 7816

P4001 P4001 P4001

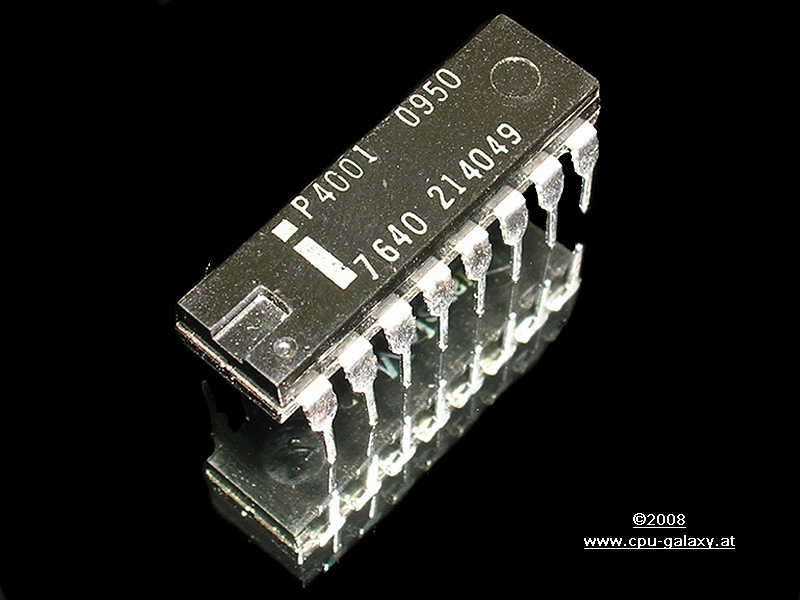

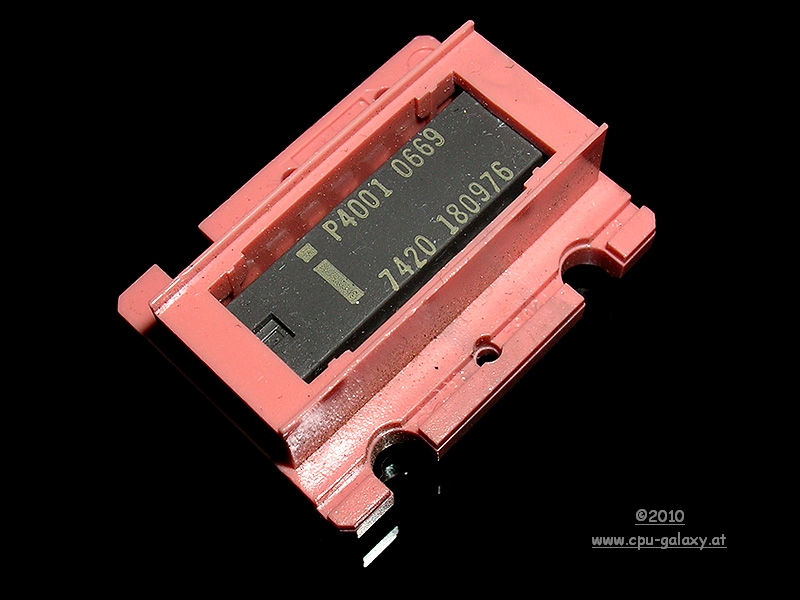

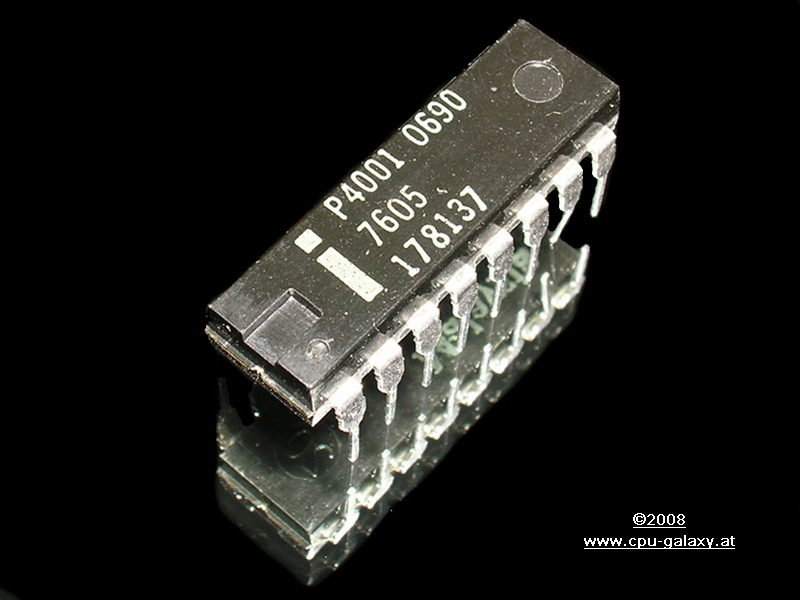

Malaysia, 7605 Malaysia, 7640 new in carrier, Mexico
embossed "i"

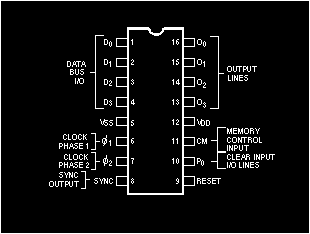

Intel 4001 Pinout

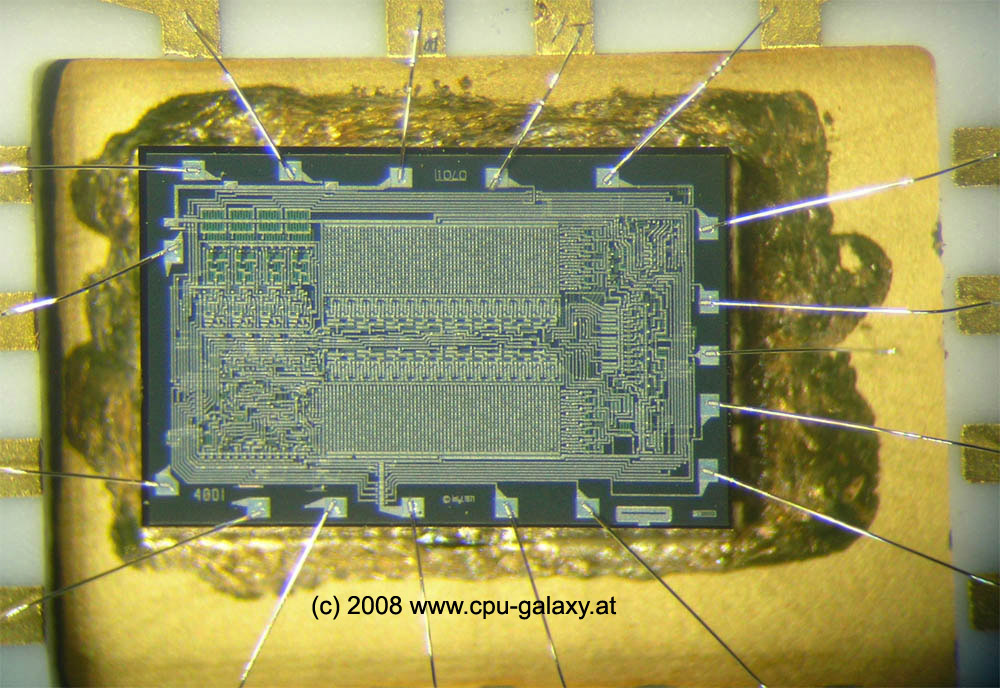

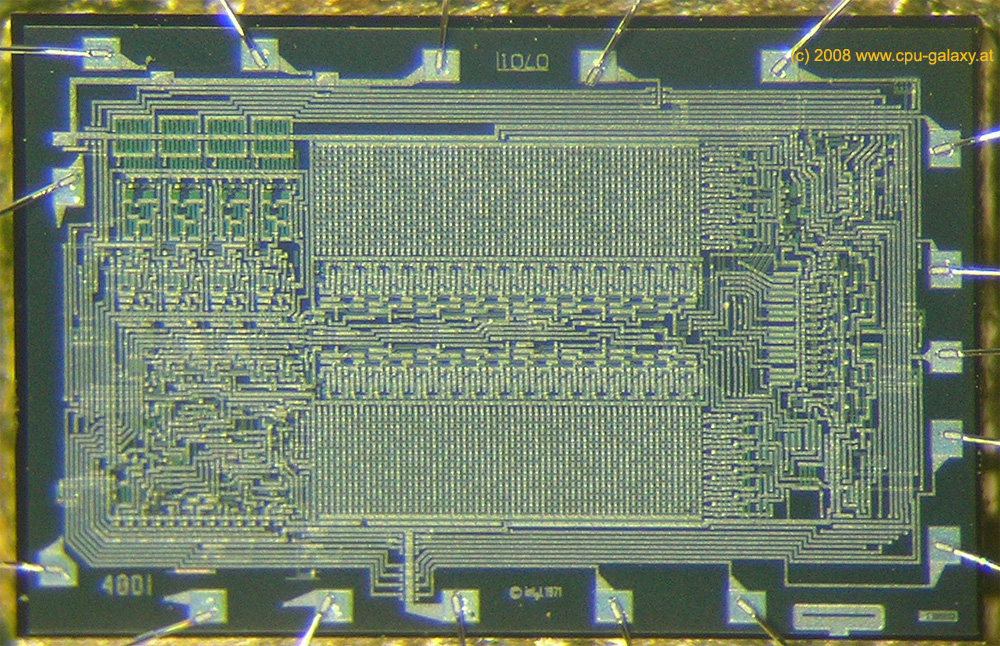

4001 cap off with die core.
click
here to see hires. photo of the core.
