Technical Specification


Introduction date:

Technology:
Category:
Inputs and Outputs:
Memory:
Max. access time:
Nom. Supp:
Power Dissipation

History:


1969

P-channel silicon gate MOS technology
General Purpose Mask Programmable ROM
DTL and TTL Compatible
256 x 8-bit
1.0us
+5V, -9V
700 mW

The 1301 is a pin-for-pin replacement part which is programmed by a
metal mask and is ideal for large volumes and lower cost production runs
of systems initially using the 1601/1701

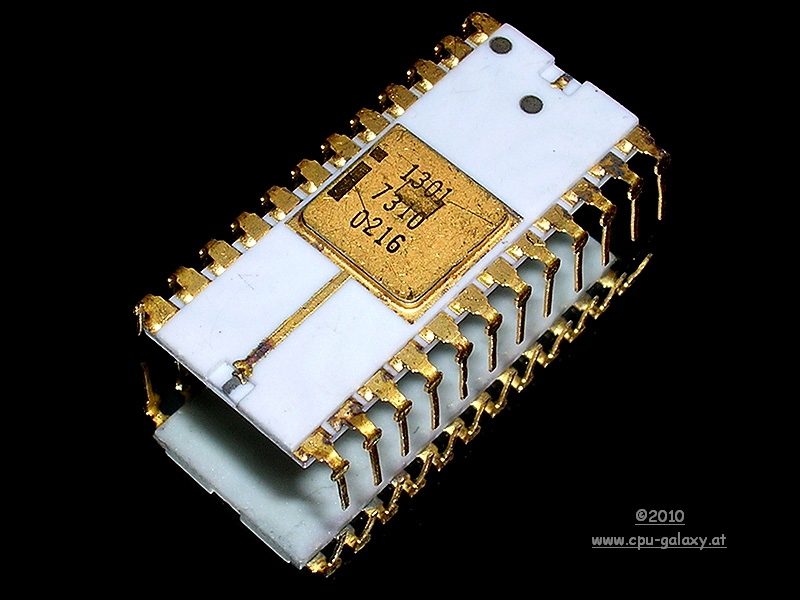

  1301

  Malaysia, 765
