Repairing Pins:
Part 1
One
of the horrible things for collectors are chips with bent pins.
If no pin is broken there is still hope to
change the
chip's appearance. It's very hard work, but if you like your
chips you will take care of them ;-)

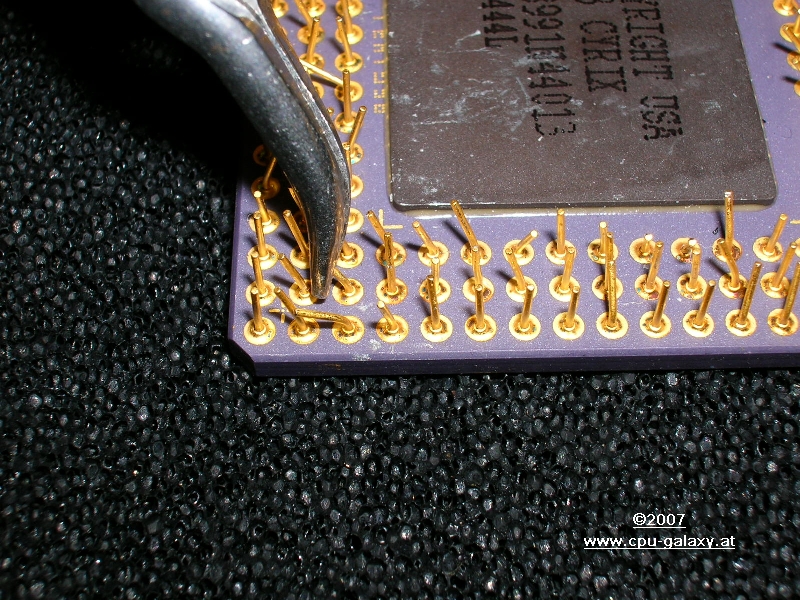

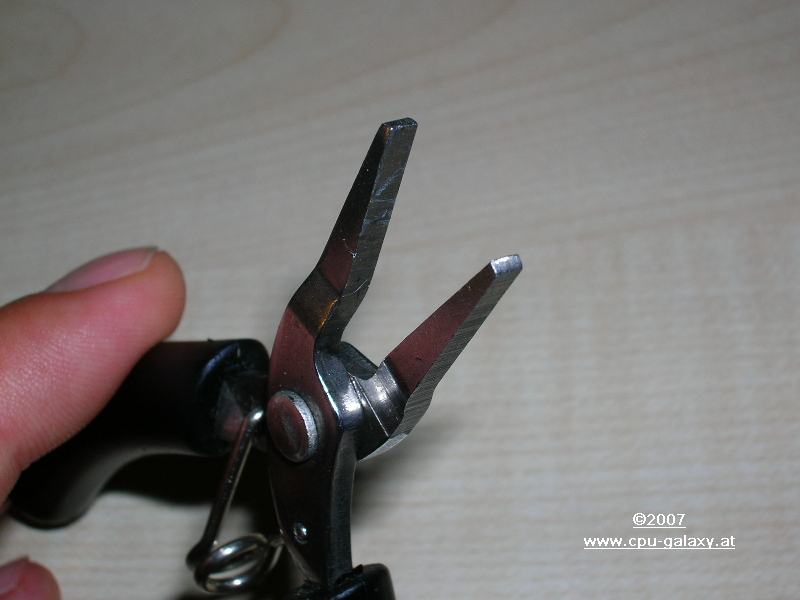

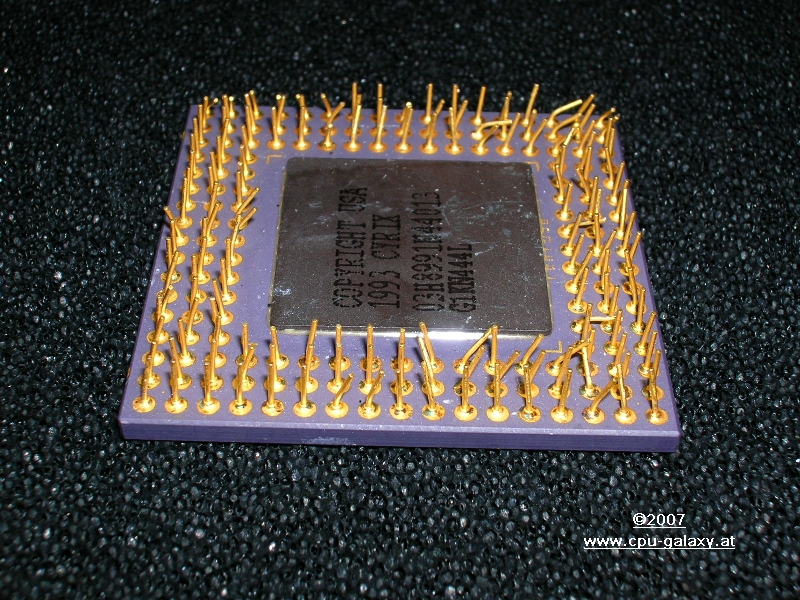

For a CPU with bent pins like on this photo I use two kinds of

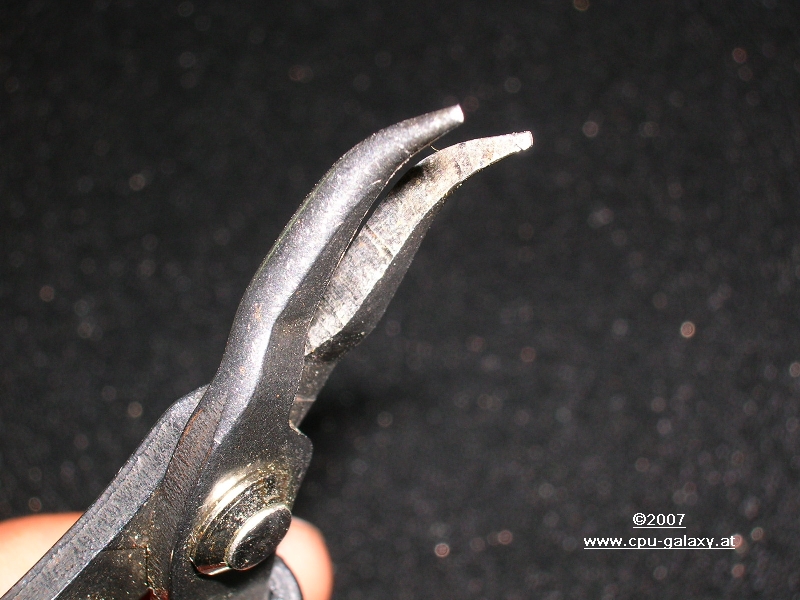

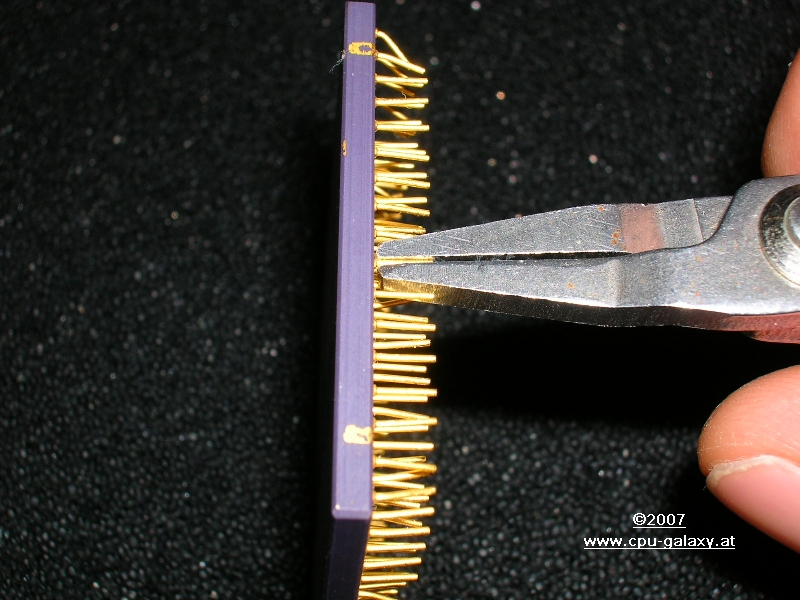

grippers. A pointed one for erecting and a
flat one for straightening.
This is really a hard way, but it works. This is
possible for all kinds of chips, but not for socket 478.
These pins
are too close altogether and the small pins of a socket 478
CPU break after on time of bending.
Part 2

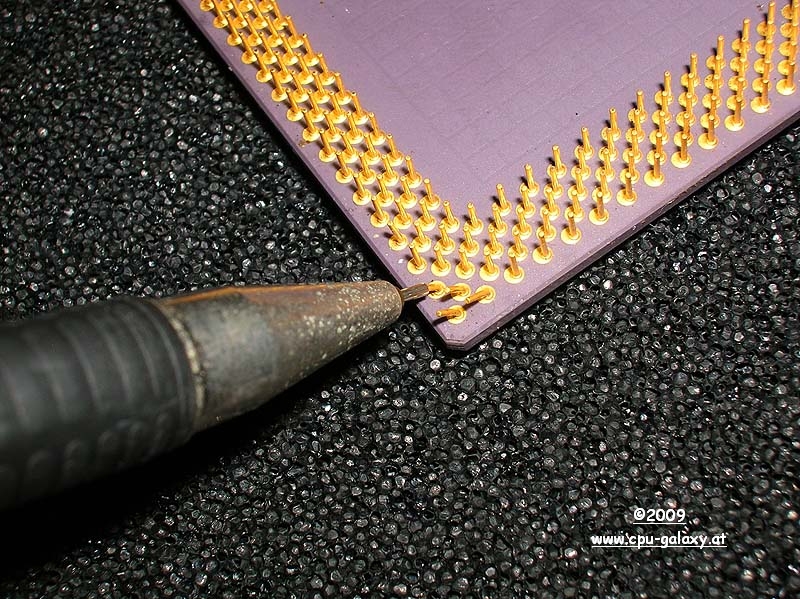

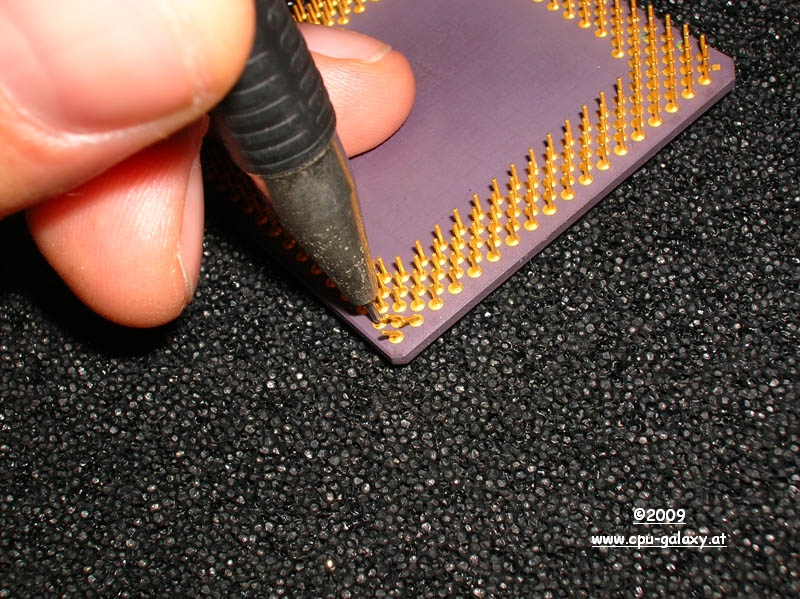

An other way to straight up bent pins is a mechanical lead pencil,
without the lead. The whole on the top

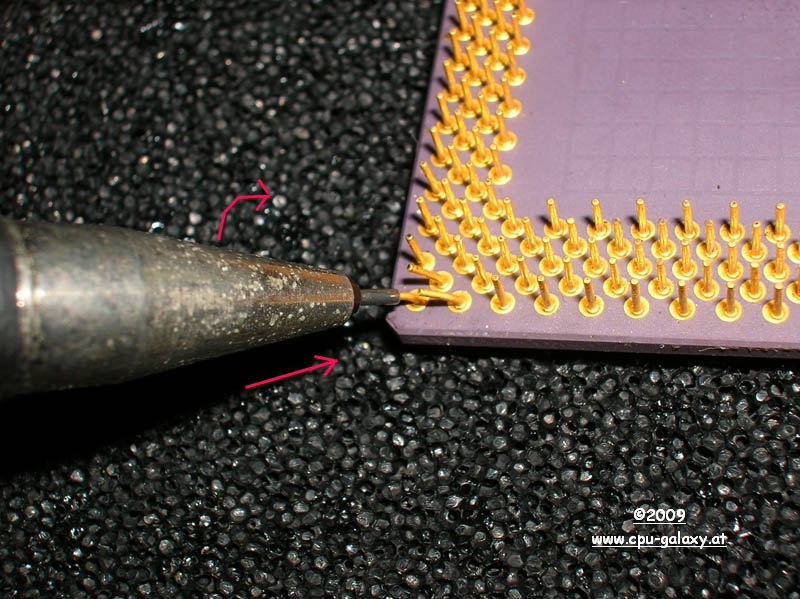

is 0,5 mm cross. You plug the
pencil on the bent pin and bend it straight. easily, but it takes
the same time
like the work with the grippers.

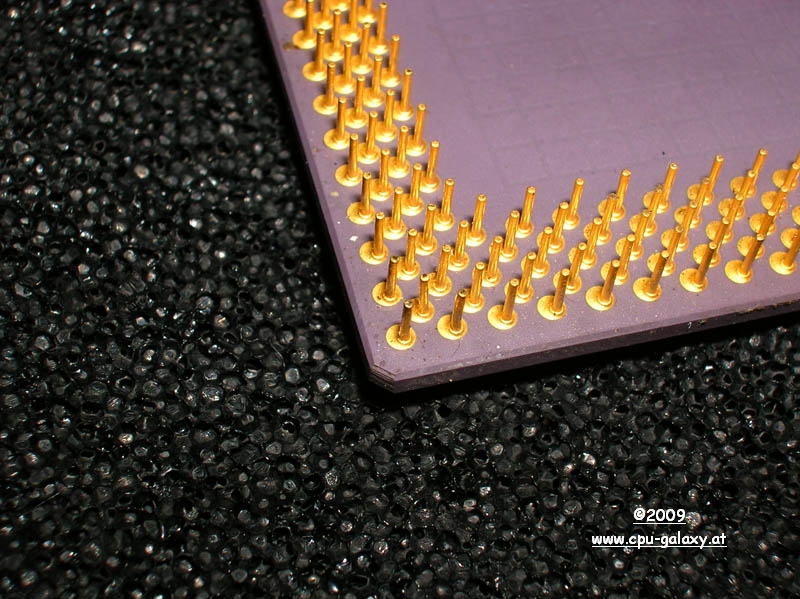

But it's possible to repair Socket 478 cpus with this method. Maybe
you should take a thinner pencil.
Part 3

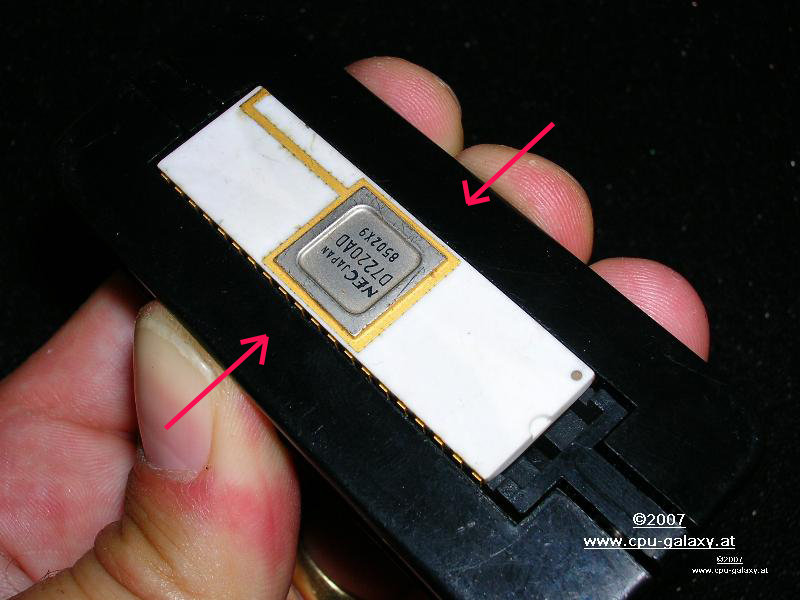

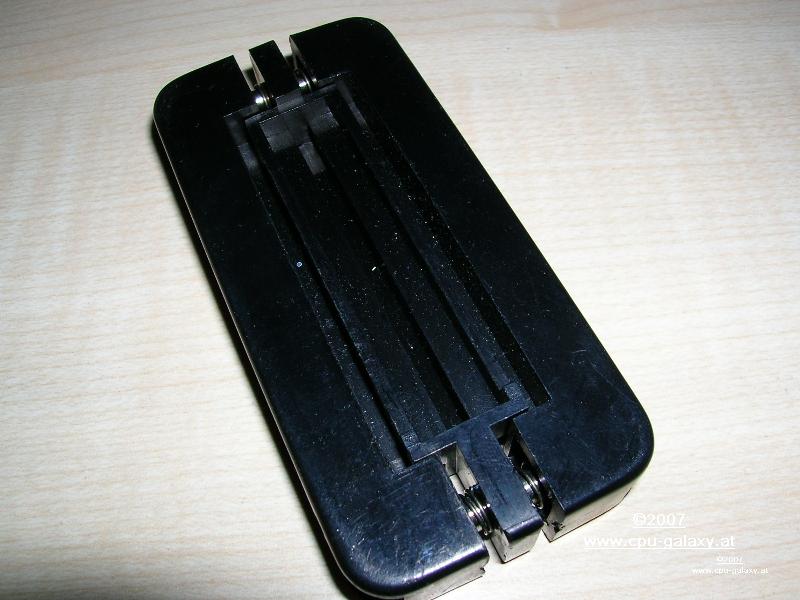

A other helpful part I found at an electronic store is a pin

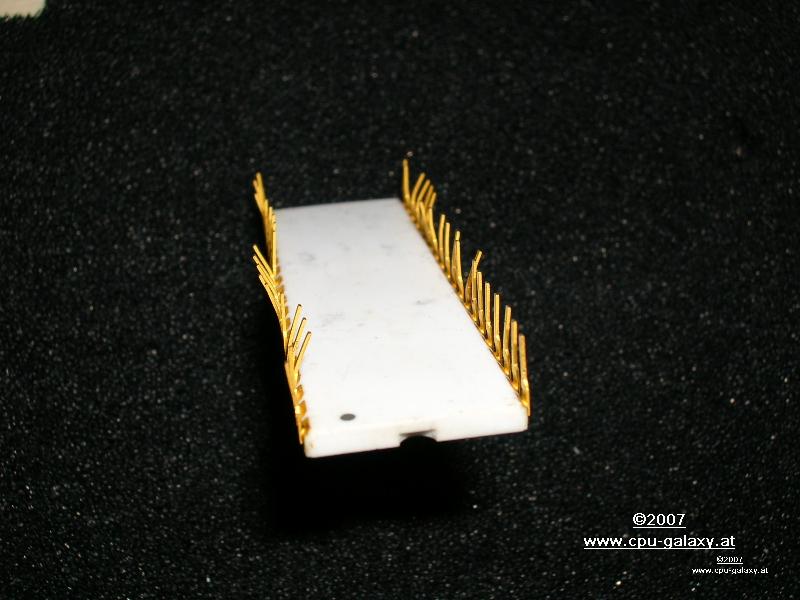

straighter for chips in a normal DIP package. It's very easy, you put your
chip with bent pins in this strange object, press, and

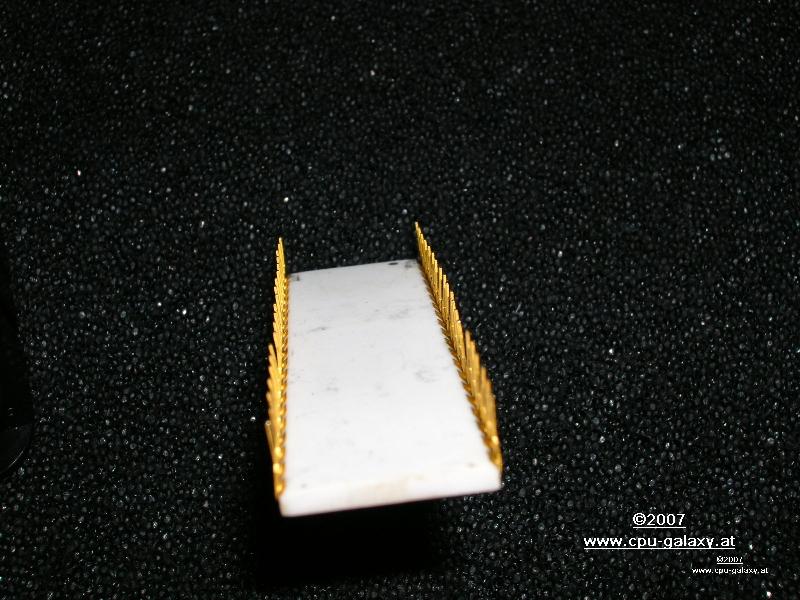

all pins are straight! Really cool, saves a lot of work!
This part costs about 15$, but it is not easy to get one. I bought
it at a small electronic store. It was his last one, told me the
seller there.
Anyway, I think you should know about it ;-)
|
